A Modular Platform Designed To Make Edge Vision AI Easy
Are you looking for an Edge AI camera board to integrate into your application?
Do you want to bring AI to your existing block cameras network at the Edge?
Is extending NXP i.MX 8M Plus processors' Edge ML/AI processing power in a compact SoM board your priority?
No matter your needs, SCAiLX brings embedded and Edge AI processing capabilities right on the camera level.
Download SCAiLX Brochure
Built With Modularity At Its Core
Designed, developed and manufactured by Videology, SCAiLX is a modular device platform with a powerful AI engine. Users can connect a selection of peripherals such as cameras, adapters and output boards to the SCAiLX Edge AI Platform.
SCAiLX is a compact, lightweight, flexible and secure solution for Edge Vision AI.
Whether you are a vision system developer, integrator, software vendor or OEM, SCAiLX is the platform to build and run your vision AI inference models on the Edge.
With SCAiLX, your primary focus remains where it should be – on refining and enhancing your AI applications. Our complete platform empowers you to develop, deploy and at scale effortlessly and securely, unlocking the full potential of your AI innovations!
Key Facts About SCAiLX
The SCAiLX Edge AI modular platform is based on the NXP i.MX 8M Plus processor with a board size of 42x42 mm. This universal SoM board can connect to various add-on boards for multiple types of connectivity or sensors.
- All SCAiLX platform interface boards have the same size of 42x42 mm (1.65x1.65")
- The SCAiLX-SOM-AI board can be connected to:
- A Videology Board Level camera board
- A Videology Zoom Block Camera w/LVDS output
- A 2 MP Tamron block camera w/LVDS output
- A 2 MP Sony block camera w/LVDS output
- The SCAiLX platform can be powered with PoE or 12V DC
SCAiLX Board Level Cameras
Featuring a 2 MP global shutter and a 1/2.6” Onsemi sensor, the SCAiLX board level camera is equipped with an onboard Image Signal Processor (ISP). As the first camera designed for the SCAiLX platform, the SCAiLX-2GS234 is available in both monochrome and color versions.
With a resolution of 1920x1200 at 60 fps, this camera delivers Full HD video and images. Its native MIPI video output interface seamlessly integrates with the SCAiLX platform, providing high-quality video for direct AI processing.
An example of how SCAiLX and this board level camera can be combined:
- SCAiLX SoM processor board (SCAILX-SOM-AI)
- SCAiLX camera board (2GS234-xC)
- SCAiLX ethernet PoE or DC power adapter board (SCAILX-ETH-POE / SCAILX-ETH-DC)
Our commitment to enhancing the SCAiLX board level camera lineup will continue to meet the increasing demands of Edge AI applications.
Learn how to deploy your AI models at the Edge with confidence
Easy and quick... The SCAiLX Edge AI Camera Dev Kit is an NXP I.MX 8M Plus based developer kit for vision AI PoC development.
Whether it is for a solution with our global shutter MIPI camera, a link with a zoom block or, for example, stereo vision, this kit contains the basic components to make it all possible.
If you are ready to test and integrate SCAiLX into your application, contact one of our authorized distribution partners, agents or resellers or us directly and order it today.
Dual Camera Capture for AI-Powered Stereo Vision
The SCAilX SoM processor board is engineered for advanced dual camera streaming, supporting up to 1080p at 60 frames per second. Equipped with two identical MIPI CSI-2 camera ports, the SCAilX-SOM-AI board becomes compatible with 2x SCAILX-2GS234-xY camera modules. Enabling depth perception and distance recognition.
Alternatively, each stream can be configured to have different settings (resolution and frame rates) based on different use cases.

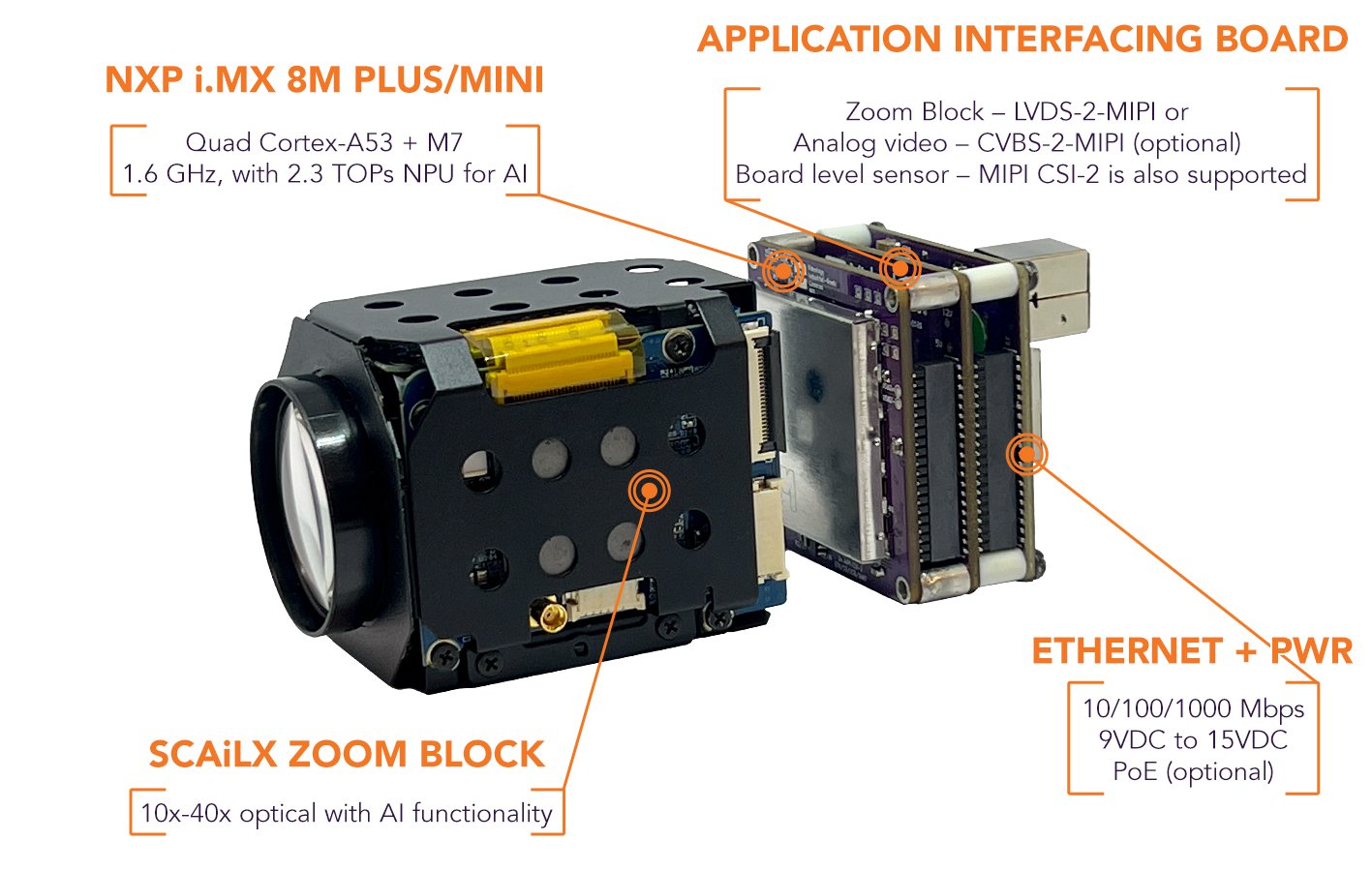

SCAiLX and Zoom Block Cameras
Launched in 2022, SCAiLX-ZB was a first-to-market zoom block camera with embedded Edge AI. As a response to market feedback, we have further expanded the functionality of the SCAiLX platform to include all 2 MP LVDS block cameras from Sony and Tamron as well.

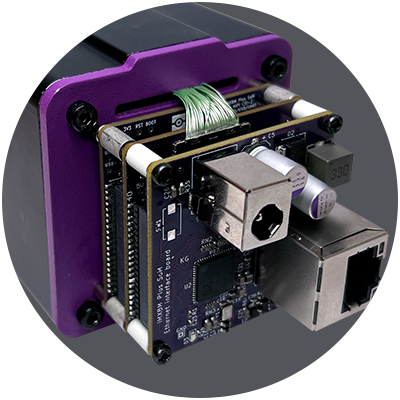

A typical SCAILX and zoom block camera assembly would combine:
- 2 MP LVDS block camera (Videology, Sony, or Tamron)
- SCAiLX SoM processor board (SCAILX-SOM-AI)
- SCAiLX adapter board (SCAILX-LVDS-2-MIPI)
- SCAiLX Ethernet PoE or DC power adapter board (SCAILX-ETH-POE / SCAILX-ETH-DC)
Empower your existing block camera networks by adding AI-driven capabilities with SCAiLX today.
Join us on our journey towards a future with Edge-AI cameras powered by SCAiLX
Experience the accessibility of Edge AI through our innovative camera technology and meet with our team today!
